Structural Steel Connection Design in USA

Why Fabricators and Contractors Choose Matrix Steel Solutions for Connection Design

When a structural engineer of record delegates connection design to the fabricator, the quality of that design decides whether a project stays on schedule or stalls in RFIs. Matrix Steel Solutions provides structural steel connection design services USA-wide, built specifically for fabricators, detailers, and general contractors who need connections that are safe, code-compliant, and ready to build without back-and-forth.

Our engineers work from your shop's preferred bolt patterns, weld types, and fabrication methods, so every design we hand back fits your existing workflow instead of forcing you to adapt to ours. Whether the project is a single warehouse frame or a multi-building industrial complex, our structural steel connection design services USA teams deliver calculations and sketches that hold up under review and move straight into shop drawings.

We also understand that connection design rarely happens in isolation. It sits between the EOR's structural intent, the detailer's model, and the fabricator's shop floor, and problems at any one of those points can ripple through the whole schedule. Matrix Steel Solutions positions itself as the coordination point that keeps those three sides aligned, rather than just another engineering vendor producing calculations in isolation. That's the difference between a connection package that gets stamped and filed, and one that actually keeps a project moving.

What Our Structural Steel Connection Design Services Include

Matrix Steel Solutions covers the full scope of connection engineering that a modern steel project demands:

• Shear connections for beams, girders, and joists
• Moment connections for lateral and gravity systems
• Braced frame and truss connections
• Base plates, anchor rods, and column base design
• Stiffener plates, gusset plates, and cap plates
• High-seismic detailing for Risk Category III and IV structures
• PE-stamped calculation packages ready for submittal

Every deliverable is checked against current AISC 360, AISC 341 (seismic provisions), and AISC 358 (prequalified moment connections) requirements before it reaches your desk, so you're not left correcting our work on your own time.

We also scale the level of detail to the project. A straightforward warehouse frame with repetitive shear connections doesn't need the same documentation depth as a high-rise moment frame in a high-seismic zone, and pricing your project as if it did only adds unnecessary cost. Our team scopes each engagement based on actual connection complexity, member sizes, and the number of unique connection types on the job — not a flat per-piece rate that penalizes simple projects and underprices complex ones.

Delegated Connection Design Built Around Your Project Workflow

Delegated connection design has become standard practice across most of the country — the EOR sets the loads and criteria, and a specialty engineer designs the actual joints. Done well, this splits the work efficiently. Done poorly, it produces mismatched connections, missing workpoints, and a flood of RFIs during fabrication.

Matrix Steel Solutions treats delegated connection design as a coordination problem as much as an engineering one. We start by reviewing the EOR's connection design criteria and general notes closely, flag any gaps before they become field issues, and confirm load paths against the framing plan. From there, our team produces connection sketches and supplemental connection maps that communicate clearly to your detailers — not just calculations that satisfy a reviewer. The result is fewer RFIs, faster IFA turnaround, and a smoother handoff from design to shop drawings.

We're also familiar with how delegated connection design responsibility shifts depending on the region and the contract structure. On some projects, the EOR designates exact connection types down to the bolt pattern. On others, the fabricator's engineer has latitude to select connections that suit shop capabilities, as long as loads and code requirements are met. Matrix Steel Solutions adapts to whichever framework your project falls under, and where the contract documents are ambiguous about that split, we raise the question early instead of guessing and risking rework later.

AISC Steel Connection Design You Can Rely On

Every connection our team designs follows AISC steel connection design standards to the letter, including the AISC Steel Construction Manual, the Seismic Design Manual where applicable, and the Code of Standard Practice for connection responsibility. We stay current as these standards are updated, so your project isn't designed against an outdated edition.

Because codes vary in how strictly they're enforced from state to state and jurisdiction to jurisdiction, our engineers also account for local building department expectations and typical plan-review comments in the region your project is being built. That local awareness, paired with strict AISC steel connection design compliance, keeps your submittals moving instead of bouncing back for corrections.

Beyond the calculations themselves, we document our AISC steel connection design work in a way that makes third-party review straightforward. Reference sections, load combinations, and governing limit states are called out clearly on every sketch, so a peer reviewer or building official can trace our design logic without needing a phone call to walk through it.

Bolted and Welded Steel Connections for Every Project Type

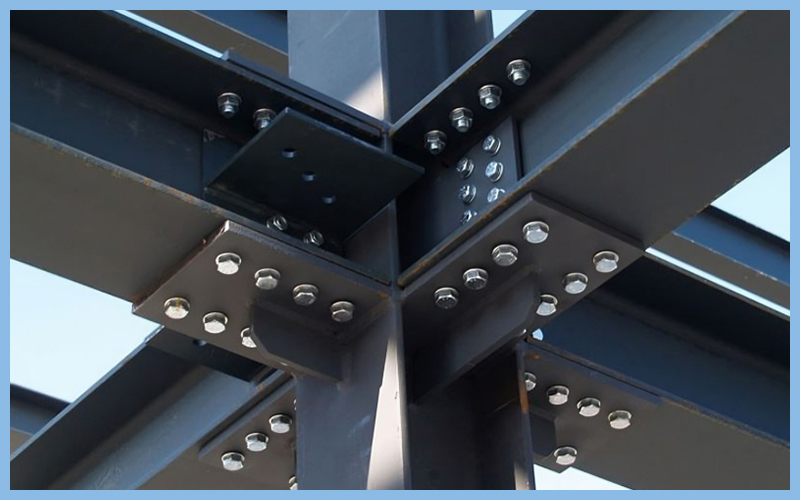

Not every shop fabricates the same way, and connection design should reflect that. Matrix Steel Solutions designs bolted and welded steel connections tailored to your shop's actual capabilities and preferences rather than a generic default.

For bolted work, we detail shear tabs, clip angles, and end plates sized for your standard bolt diameters and hole patterns. For welded connections, we specify weld types, sizes, and sequences that match your shop's welding certifications and equipment, minimizing distortion and rework. Many projects call for a mix of both — bolted field connections with shop-welded assemblies, for example — and our team designs across that mix without adding unnecessary complexity or cost to either side.

We also consider erection sequencing when choosing between bolted and welded details. A connection that's easy to weld in a controlled shop environment can be far harder to execute safely in the field, especially at height or in tight tolerances. Our bolted and welded steel connections are designed with the erector in mind as much as the fabricator, reducing the chance of field rework once steel is already on site.

Moment Connection Design Services for Complex Structures

Moment frames carry both gravity and lateral loads through the connection itself, which makes moment connection design services one of the more demanding parts of structural steel engineering. A connection that's under-designed risks ductility failure in a seismic event; one that's over-designed adds unnecessary steel tonnage and cost.

Our moment connection design services draw on AISC 358 prequalified connection types — including bolted flange plates, welded unreinforced flange-bolted web, and reduced beam section connections — selected based on your project's seismic design category, frame geometry, and fabrication constraints. We also handle non-prequalified connections that require project-specific qualification testing coordination when a standard type doesn't fit the application.

Moment connections also tend to be where cost overruns hide, since panel zone reinforcement, continuity plates, and doubler plates add tonnage that isn't always obvious from the framing plan alone. As part of our moment connection design services, we flag these added-material items early so your estimate reflects the true scope of the frame, not just the beam and column sizes shown in the structural drawings.

Base Plate and Anchor Bolt Design

The connection between steel and concrete is just as critical as the connections within the steel frame itself. Our base plate and anchor bolt design services size base plates, anchor rod groups, and grout thickness to safely transfer column loads — axial, shear, and moment — into the foundation.

We coordinate directly with your foundation engineer or general contractor to confirm concrete strength, edge distances, and embedment depths before finalizing anchor layouts, which avoids the common conflict where anchor bolts clash with foundation reinforcement discovered only after concrete has been poured. For pre-engineered metal buildings and light industrial structures, we also provide simplified base plate packages sized for faster shop and field installation.

For heavier industrial columns and moment-frame bases, our base plate and anchor bolt design also addresses concrete breakout and pryout checks per ACI 318 Chapter 17, which are easy to overlook when a base plate is treated as a purely structural-steel calculation rather than a steel-to-concrete interaction problem.

Steel Connection Design for Fabricators — Built for Speed and Accuracy

Fabricators are often the ones carrying connection design responsibility on paper, even when the actual engineering is outsourced. That's why our steel connection design for fabricators is built around your production schedule, not just code compliance on its own.

We deliver connection sketches formatted for direct use by your detailing team, minimizing the translation work between engineering output and Tekla, SDS/2, or Advance Steel models. Revisions during the shop drawing review cycle are turned around quickly, so a connection change doesn't stall your entire drawing package. For fabricators bidding competitively, our steel connection design for fabricators also flags opportunities to standardize connection types across a project, reducing both engineering time and shop labor.

We know fabricators are often working on thin margins and tight bid timelines, so our steel connection design for fabricators includes budgetary connection pricing during the estimating stage when needed, ahead of a full engineering commitment. That way you're not committing engineering fees to a project before the bid is even won.

Industries We Serve Across the USA

Matrix Steel Solutions supports structural steel connection design services USA-wide across a broad range of project types, including:

• Warehouses and distribution centers
• Commercial and mixed-use developments
• Healthcare and institutional facilities
• Pre-engineered metal buildings
• Industrial plants and process structures
• Education and government buildings
• Retail and hospitality construction

Regardless of sector, our approach stays the same — accurate, code-compliant connection design that respects your budget, schedule, and shop capabilities.

Our Connection Design Process

• Review — We study the EOR's connection design criteria, general notes, and framing plans to identify loads, seismic category, and any project-specific requirements.
• Design — Our engineers develop connection sketches and calculations for every joint type on the project, coordinated with your fabrication preferences.
• Verify — Every package is cross-checked against AISC 360, 341, and 358 before it leaves our office, along with an internal QA review.
• Deliver — PE-stamped calculations and connection sketches are handed off in a format your detailing team can use immediately.
• Support — We stay available through the shop drawing review cycle to resolve RFIs and revisions without delay.

Frequently Asked Questions

Who is typically responsible for structural steel connection design?

On most projects, the structural engineer of record sets the connection design criteria and loads, then delegates the actual connection design to the fabricator's engineer — a practice known as delegated connection design. The EOR remains responsible for the overall adequacy of the structure, while the delegated engineer designs individual connections to meet the stated criteria.

Do you provide PE-stamped calculations for every state?

Yes. Matrix Steel Solutions provides structural steel connection design services USA-wide with PE review available for the jurisdictions your project requires.

Can you work directly with our detailing software?

Yes. Our connection sketches and calculations are formatted to drop directly into Tekla, SDS/2, and Advance Steel workflows, so your detailing team isn't re-drawing information that already exists.

What information do you need to start a connection design package?

Typically the structural drawings, the EOR's connection design criteria or general notes, applicable specifications, and any shop-specific preferences for bolting or welding. The more of this we have upfront, the fewer clarification RFIs come up mid-project.
